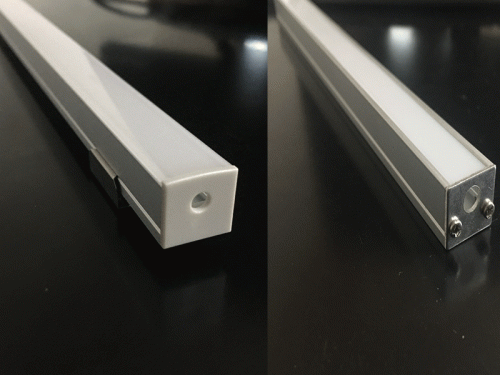

alum profile and fixture for 12mm width PCB board light strips

Product: slim profile

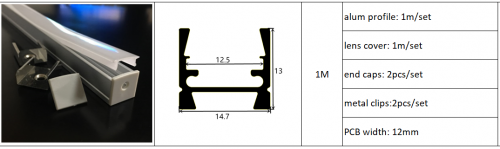

Size: 15x13mm

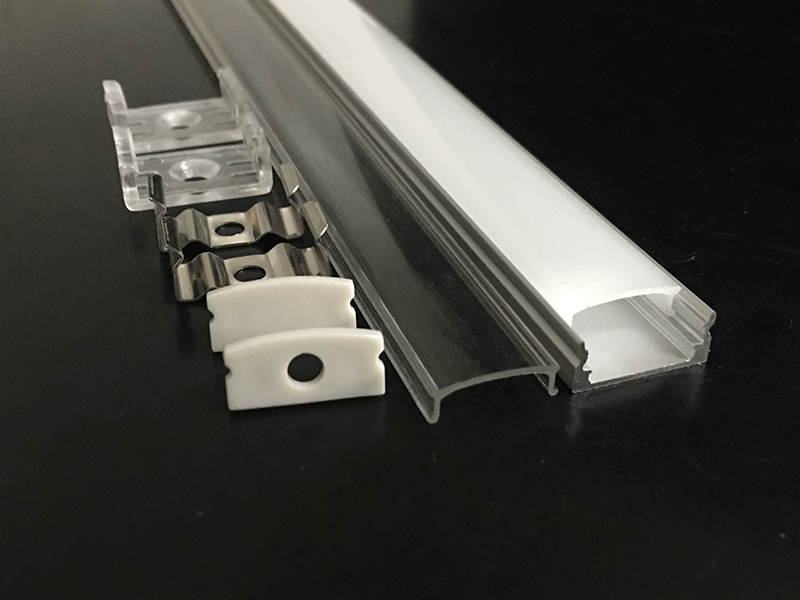

Contents: 1pc 1m length alum channels, 1pc clear/milky/frosted lense cover for options,2pcs metal clips, 2pcs plastic/metal end capsules suitable for 12mm width PCB board

Features:

1. House: extruded aluminum house mechanically loaded PCB light source with ease of accessibility in the fields of commercial,industrial and manufacturing applications, length can be 20cm to 300cm as customized
2. Finish: can be in silver metalic,black painted or matte white, special colors also available(MOQ required)
3. Lens: uniquely square,high efficient acrylic lens, milky, clear and frosted for options
4. Led light source: 10-11mm width PCB led strip lights(both rigid and flexible lights workable), be in white colors 2700k,3500k,4000k (min 80 CRI, can be above 95)and red, blue,green, yellow, amber, pink, RGB,and multi-dream colors
5. Mountings: suspended with field-adjustable griplock and pendant for options

Sample for quality benchmark is available,OEM is acceptable.
